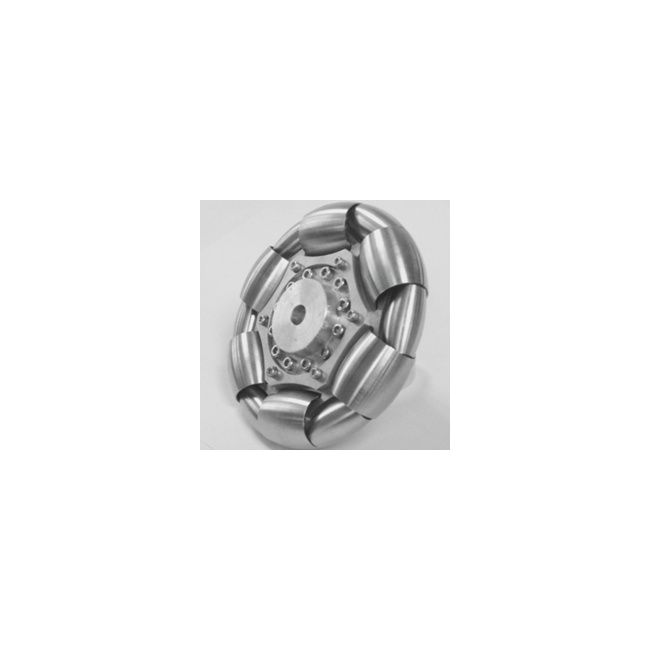

100mm Stainless Steel rollers Omni wheel for ball balance ballbot - 14183

Omni-directional wheel (omni wheel) rolling wheels as normal wheel, almost frictionless lateral sliding (it turns don’t slip).Using the omni-directional wheel, could let your robot turn smooth or the establish a complete power transmission system.Each omni-directional wheel are able to opearate independently.rollers and compact layout provide additional flexibility.

The overall aluminum body, make omni-directional wheel more stronger, more pressure, more durable.Sigle omni wheel’s structure, flexibility would be significantly increased , easy handling.Adopt a variety of high-precision processing technology,combined with them (wire-cutting, laser cutting, stamping processing, etc.), the omni-directional wheel could do lateral movement and sliding flexiblely, omni-directional wheel movement performance to be achieved.According to the needs of users, can satisfy the load and the design demands. The picture is only for your reference instead of what you receive.The actual goods is only wheels .

Specification

• Diameter :100mm
• Width:28mm
• Body material:Stainless Steel
• Net Weight:0.45kg
• Roller material:Stainless Steel
• Number of big roller:6
• Number of small roller:6
• Number of bearing :32

Features

• Unrivalled 360 degree manoeuvrability & rotation including lateral & diagonal movement
• Unique fixed orientation
• Simple & stable mounting method
• Robust &durable construction
• This kind of omni wheel suitable for conveyor.
• Load capacity:10kg

Application

Based on omni-directional wheel technology, would be used for the service robot, carts, transfer conveyor, luggage, etc., the omni-directional wheel will provide a perfect performance, can replace traditional or integrated wheel.

Packaging Details

• Unit Type:piece
• Package Weight: 0.250kg (0.55lb.)
• Package Size: 8cm x 8cm x 8cm (3.15in x 3.15in x 3.15in)
