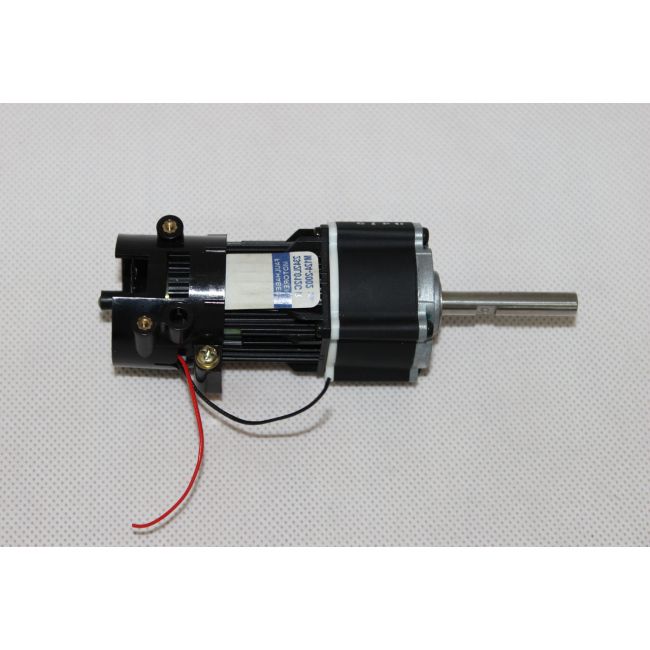

KP0002 DC Motor
The DC motor is a gear motor that has two basic parts: the rotating part that is called the armature, and the stationary part that includes coils of wire called the field coils. The stationary part is also called the stator. Also, this motor comes with metal gearbox and shaft. This motor is an electric motor used in running on direct current electricity. It is used in automation appliances such as mobile robot project, etc.
€ 119,00
Beschikbaarheid:
Op voorraad
SKU
2824
The DC motor is a gear motor that has two basic parts: the rotating part that is called the armature, and the stationary part that includes coils of wire called the field coils. The stationary part is also called the stator. Also, this motor comes with metal gearbox and shaft. This motor is an electric motor used in running on direct current electricity. It is used in automation appliances such as mobile robot project, etc.
Specifications
- Type: Faulhaber 12V DC Coreless Motor
- Power: 17W
- No Load Speed: 8100RPM/minute
- Reduced Speed: 120RPM/minute
- Diameter: 30mm
- Length: 42mm
- Total Length: 85mm
- Diameter of Shaft: 6mm
- Length of Shaft: 35mm
- No Load Current: 75mA
- Load Current: 1400mA
- Gearbox Ratio: 64:1
| SKU | 2824 |
|---|---|
| Kleur | Zwart |
| Merk | Nexus Robot |
| Lengte cm | 4,2 |
| Diameter cm | 3 |
| Gewicht | 1.000000 |
| Land van productie | China |
