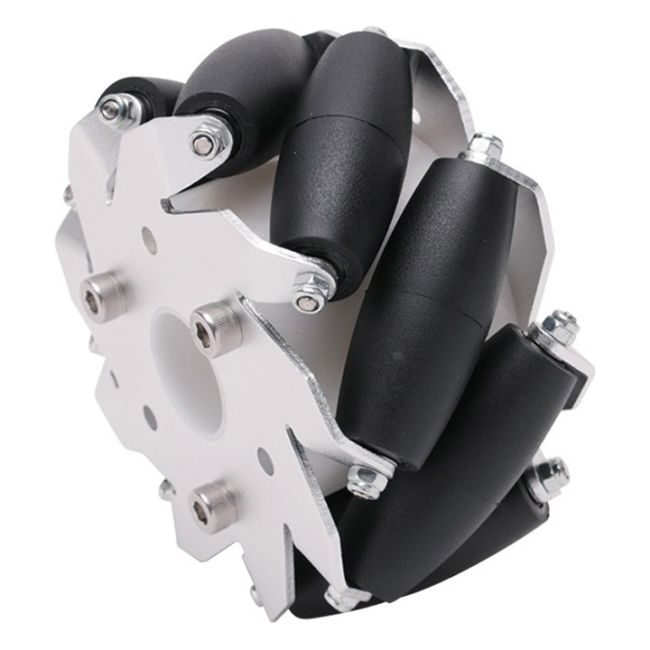

100mm (4 inch) Aluminium Mecanum Wheel Basic - 14162R
€ 29,95
The mecanum wheel is one design for a wheel which can move in any direction. It is sometimes called the ilon wheel after itsSwedish inventor :Bengt Ilon. This wheel contain a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.
Beschikbaarheid:
Op voorraad
SKU
1872-17771
The mecanum wheel is one design for a wheel which can move in any direction. It is sometimes called the ilon wheel after itsSwedish inventor :Bengt Ilon. This wheel contain a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.
Specifications
- Diameter: 100mm
- Width: 50mm
- Number of Rollers: 9
- Number of Plates: 2
- Body material: Aluminium alloy
- Roller material: PP+PE
- Spacer material: Nylon
- Length of roller: 47mm
- Net weight: 400g
- Load capacity: 15Kg
Compatible Hubs
- 6mm Hub 18007
- 8mm Hub 18008
- 10mm Hub 18009
- 12mm Hub 18010
- 16mm Hub 18012
- 12mm Key Hub 18017
- 8mm Key Hub 18024
- 16mm Key Hub 18026
- 10mm Key Hub 18025
- 10mm Stainless Steel Key Hub
- 12mm Stainless Steel Key Hub
| SKU | 1872-17771 |
|---|---|
| EAN | 4562179399737 |
| Kleur | RVS |
| Merk | Nexus Robot |
| Diameter cm | 10 |
| Gewicht | 0.400000 |
| Land van productie | China |
