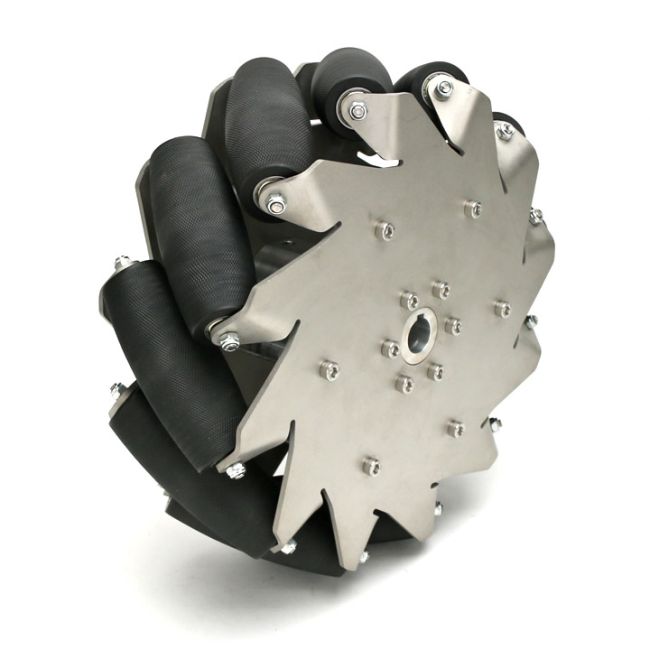

254mm Steel Mecanum Wheel Left/Bearing Rollers – 14141L
The 254mm steel mecanum wheel is a heavy duty mecanum wheel. Each wheel is comprised of 12 nylon rollers, mounted so that their axis of rotation is 45 to the axis of the main wheel as well as moving forward and backward like conventional wheels, steel mecanum wheel allow sideways movement by spinning wheels on the front and rear axles in opposite directions.
The 254mm steel mecanum wheel is a heavy duty mecanum wheel. Each wheel is comprised of 12 nylon rollers, mounted so that their axis of rotation is 45 to the axis of the main wheel as well as moving forward and backward like conventional wheels, steel mecanum wheel allow sideways movement by spinning wheels on the front and rear axles in opposite directions. The wheel is sold in assembled units with aluminum axle. These axles and rollers are sandwiched between two thick steel plates. The rollers are made of black nylon, the steel body mecanum wheels of load capacity is higher than aluminum mecanum wheel.
Specifications
- Diameter: 254mm
- Width: 95mm
- Number of Rollers: 12
- Number of Plates: 2
- Body Materials: Steel
- Roller Material: NylonSpacer
- Material: Aluminum
- Length of roller: 92mm
- Diameter of Roller: 38,2mm
- Net Weight: 4,2kg
- Load Capacity: 60KG
SKU | 1943-17852 |
---|---|
EAN | 4562179396903 |
Kleur | RVS |
Merk | Nexus Robot |
Diameter cm | 25,4 |
Gewicht | 4.200000 |
Land van productie | China |
