127mm (5 inch) Aluminium Mecanum Wheel Basic Right - 14198R

€ 39,95

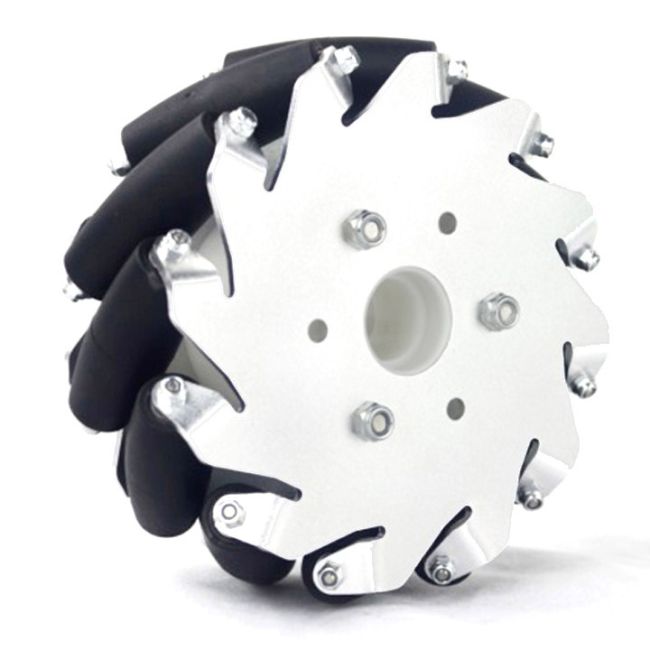

The mecanum wheel is one design for a wheel which can move in any direction, It is sometimes called the ilon wheel after itsSwedish inventor :Bengt Ilon. This wheel contain a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.

Beschikbaarheid:
Op voorraad
SKU
1891-17790

The mecanum wheel is one design for a wheel which can move in any direction, It is sometimes called the ilon wheel after itsSwedish inventor :Bengt Ilon. This wheel contain a series of rollers which have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the wheel attached to its circumference.

Specifications

  • Width: 51mm
  • Diameter: 127mm
  • Number of rollers: 12
  • Number of Plates: 2
  • Body material: Aluminium alloy
  • Roller material: Polyurethane
  • Net weight: 500g
  • Load capacity: 45KG/set

Compatible Hubs

  • 6mm Hub 18007
  • 8mm Hub 18008
  • 10mm Hub 18009
  • 12mm Hub 18010
  • 16mm Hub 18012
  • 12mm Key Hub 18017
  • 8mm Key Hub 18024
  • 16mm Key Hub 18026
  • 10mm Key Hub 18025
  • 10mm Stainless Steel Key Hub
  • 12mm Stainless Steel Key Hub
Meer informatie
SKU 1891-17790
EAN 4571398310904
Kleur RVS
Merk Nexus Robot
Diameter cm 12,7
Gewicht 0.500000
Land van productie China
