152mm (6 inch) Aluminium Mecanum wheel left Basic - 14165L
€ 39,95

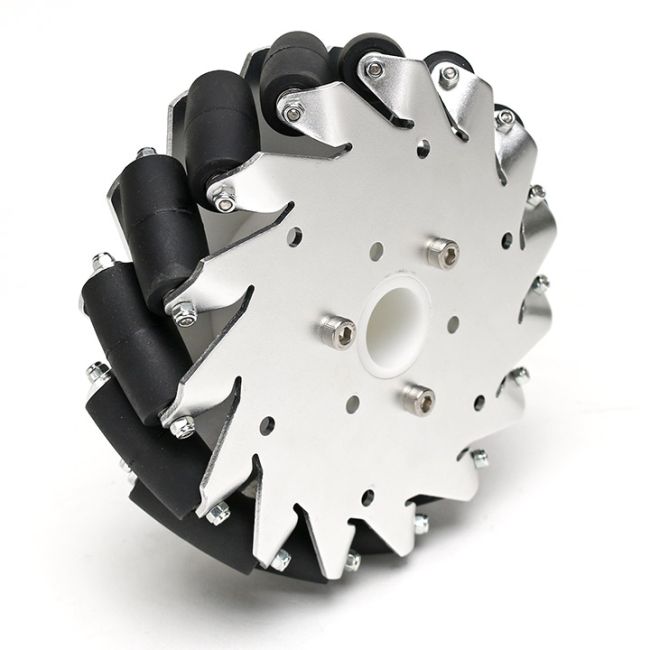

The aluminum mecanum wheel include a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel. Mecanum wheel using a standard chssis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.
Beschikbaarheid:
Op voorraad
SKU
1867-17766
The aluminum mecanum wheel include a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel. Mecanum wheel using a standard chssis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.
Specifications
- Diameter: 152,4mm(6 inch)
- Width: 55,52mm
- Number of Rollers per wheel: 15
- Number of Plates per wheel: 2
- Body material: Aluminium alloy
- Roller material: TPU
- Spacer material: Nylon
- Length of roller: 38,1mm
- Net weight per wheel: 600g
- Load capacity per wheel: 15Kg
Compatible Hubs
- 6mm Hub 18007
- 8mm Hub 18008
- 10mm Hub 18009
- 12mm Hub 18010
- 16mm Hub 18012
- 12mm Key Hub 18017
- 8mm Key Hub 18024
- 16mm Key Hub 18026
- 10mm Key Hub 18025
- 10mm Stainless Steel Key Hub
- 12mm Stainless Steel Key Hub
| SKU | 1867-17766 |
|---|---|
| EAN | 4571398310256 |
| Kleur | RVS |
| Merk | Nexus Robot |
| Diameter cm | 15,2 |
| Gewicht | 0.600000 |
| Land van productie | China |
