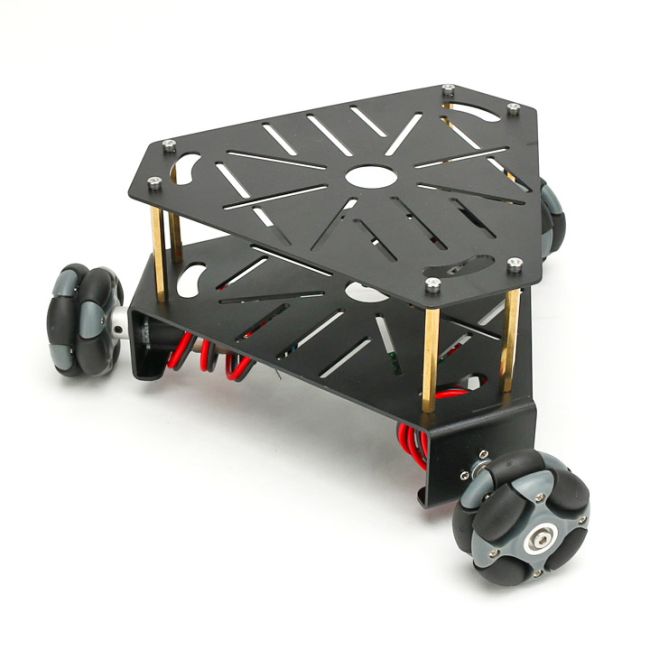

3WD 48mm Omni Wheel Robot Platform Chassis 15001 (Black)
This is a 3 wheels drive mobile robot chassis utilizing omni wheels. It capable of moving in any direction by changing the velocity and direction of each wheel without changing its orientation. It includes,DC motor with encoder, With pre-drilled screw holes it can be easily extended.
€ 149,00
Beschikbaarheid:
Op voorraad
SKU
1795-17694
This is a 3 wheels drive mobile robot chassis utilizing omni wheels. It capable of moving in any direction by changing the velocity and direction of each wheel without changing its orientation. It includes,DC motor with encoder, With pre-drilled screw holes it can be easily extended.
Kenmerken
• Appearance: Triangle
• Dimension: 230,8mm X 202,6mm X 98,5mm
• Body Material: Aluminum Alloy
• Color: Black
• Load Capacity: 1,5kg
• Net Weight: 1,5kg
Motor specificaties
• 12V DC Coreless Motor
• Power: 6W
• No Load Speed: 9600RPM/minute
• Reduced Speed: 120RPM/minute
• Diameter: 22mm
• Length: 19mm
• Total Length: 65mm
• Diameter of Shaft: 4mm
• No Load Current: 50mA
• Load Current: 500mA
• Gearbox Ratio: 80:1
Encoder specificaties
• Type: Optical
• Encoder Phase: ＡＢ
• Encoder Resolution: 4CPR
In de doos Mobile Robot Parts
• Aluminum Frame and all mounting hardware
• 3x 48mm Plastic Omni-wheel
• 3x 16009 DC Motor with encoder
| SKU | 1795-17694 |
|---|---|
| EAN | 4571398310928 |
| Kleur | Zwart |
| Merk | Nexus Robot |
| Breedte cm | 20,26 |
| Hoogte cm | 9,85 |
| Lengte cm | 23 |
| Gewicht | 1.500000 |
| Land van productie | China |
