3WD 48mm Omni Wheel Robot Platform Chassis 15001 (Silver)

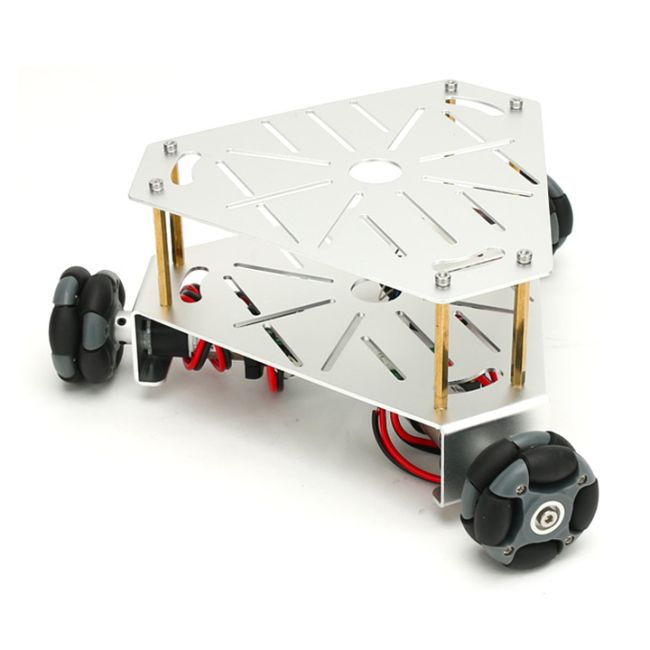

This is a 3 wheels drive mobile robot chassis utilizing omni wheels. It capable of moving in any direction by changing the velocity and direction of each wheel without changing its orientation. It includes,DC motor with encoder, With pre-drilled screw holes it can be easily extended.

€ 149,00
Beschikbaarheid: Op voorraad
SKU
1796-17695

This is a 3 wheels drive mobile robot chassis utilizing omni wheels. It capable of moving in any direction by changing the velocity and direction of each wheel without changing its orientation. It includes,DC motor with encoder, With pre-drilled screw holes it can be easily extended.

Kenmerken
• Appearance: Triangle
• Dimension: 230,8mm X 202,6mm X 98,5mm
• Body Material: Aluminum Alloy
• Color: Black
• Load Capacity: 1,5kg
• Net Weight: 1,5kg

Motor specificaties
• 12V DC Coreless Motor
• Power: 6W
• No Load Speed: 9600RPM/minute
• Reduced Speed: 120RPM/minute
• Diameter: 22mm
• Length: 19mm
• Total Length: 65mm
• Diameter of Shaft: 4mm
• No Load Current: 50mA
• Load Current: 500mA
• Gearbox Ratio: 80:1

Encoder specificaties
• Type: Optical
• Encoder Phase: AB
• Encoder Resolution: 4CPR

In de doos Mobile Robot Parts
• Aluminum Frame and all mounting hardware
• 3x 48mm Plastic Omni-wheel
• 3x 16009 DC Motor with encoder

Meer informatie
SKU 1796-17695
EAN 4571398310935
Kleur Zilver
Merk Nexus Robot
Breedte cm 20,26
Hoogte cm 9,85
Lengte cm 23
Gewicht 1.500000
Land van productie China
